660mm 3 Sheave Nylon Stringing Block for Pilot Wire Rope

Name: 660mm 3 Sheave Nylon Stringing Block for Pilot Wire Rope
Brand: XINYA
Price: 1 USD

Best 660mm 3 Sheave Nylon Stringing Block for Pilot Wire Rope wholesale

Brand Name : XINYA

Model Number : SHSN-660X100

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T,

Delivery Time : 25-35 days

Packaging Details : 1000 sets per month

Application : Stringing Pulley During Transmission Line

Wheel Size : 660mm diameter/100mm width

Usage : stringing

Type : stringing pulley block

Material : Nylon

selling point : large diameter

Conductor size (mm2) : ≤500

Rated load (kN) : 40

Weight (kg) : 85

Product Name : 3 Sheave 660mm diameter Stringing Pulley Block for Pilot Wire rope

Contact Now

3 Sheave 660mm diameter Stringing Pulley Block for Pilot Wire rope

Quick details
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 660mm, Width: 100mm
4. Three Wheels Nylon Wheels Galvanized Steel Frame
5. With Rubber Covered or Without

660mm 3 Sheave Nylon Stringing Block for Pilot Wire Rope

Application and Features

It is used to release the wire in the overhead transmission line.

And it can be used for single conductor, double split wire, four split wire, six split wire and so on.

Technical Data

Product No.	Model Type	Rated Load(KN)	Applicable Conductor ACSR(mm2)	Weight(kg)	Sheave No.	Outside DiaGroove Dia Sheave Width(mm)
80317	SHDN-660*100	20	≤500	20	1	Φ660Φ560100
80320	SHSQN-660*100	40		85	3
80321	SHWQN-660*100	60		110	5

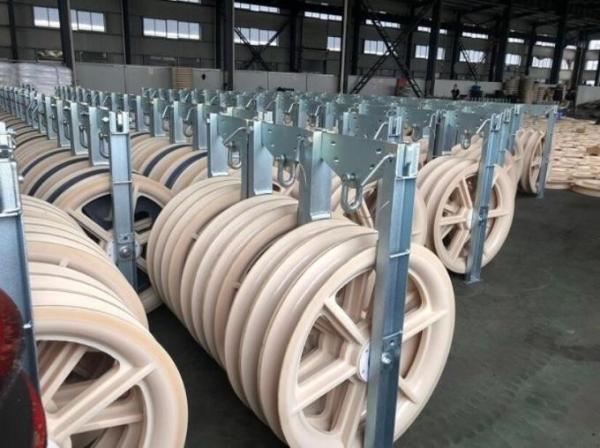

660mm 3 Sheave Nylon Stringing Block for Pilot Wire Rope Images
